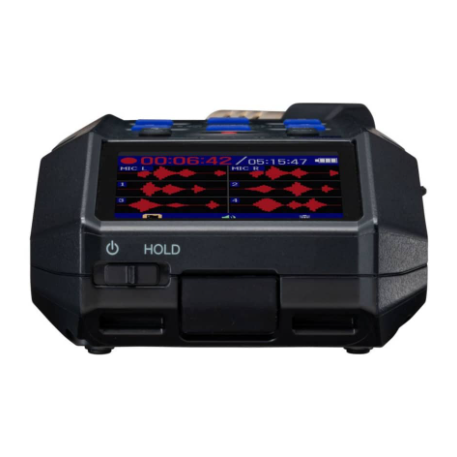

Zoom H6essential Recorder
Sold out!
₵8,532.11₵8,532.11 Excl. TaxIncl. Tax
Sold out!
6 Track Handy Recorder.
Description
With 6 tracks of 32-bit float recording, the H6essential provides unprecedented quality and unmatched versatility. With 32-bit float and dual AD converters the H6essential captures huge dynamic range. This gives creators the ability to record perfect audio, clip-free every time. The Essential Series was designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese. The 4 XLR/TRS combo inputs feature ultra-clean Zoom preamps, and the included X/Y microphones can capture up to a booming 135 dB SPL, equivalent to a jet taking off. The H6essential’s 3.0 capsule system has been updated to support 32-bit float and gives creators more options to use the right mic for their recording. Use the USB-C port to connect to PC, Mac, iOS, and Android device to use the H6essential as a 32-bit float interface while simultaneously recording all 6 tracks to an SD card. Use the BTA-1* Bluetooth Adapter to pair with your iOS device to remotely hit record, adjust your mix, view your waveforms, and change settings.
INPUT AND OUTPUT CHANNELS
| Inputs | Mic capsule | 1 |
|---|---|---|
| MIC/LINE (mono) | 4 | |
| Outputs | LINE OUT | 1 |
| Headphones | 1 | |
| Built-in speaker (mono) | 1 | |
INPUTS
| XY mic: XYH-6e | 90º XY stereo format | |
|---|---|---|
| Directionality | Unidirectional | |
| Sensitivity | −42dB/1Pa at 1kHz | |
| Maximum sound pressure input | 135 dB SPL | |
| MIC/LINE (mono) | Connectors | 4 XLR/TRS combo jacks |
| (XLR：2 HOT TRS：TIP HOT） | ||
| Input gain | Adjustment unnecessary (dual A/D converter circuits used) | |
| Input impedance | MIC: 3.8 kΩ or more | |
| LINE: 39 kΩ or more | ||
| Maximum input level | MIC: +4 dBu | |
| LINE: +24 dBu | ||
| Phantom power | +48 V | |
| Channel total 32 mA or less | ||
| Equivalent input noise | MIC: -120 dBu or less（IHF-A) @150 Ω input | |
| LINE: -95 dBu or less（IHF-A) @600 Ω input | ||
OUTPUTS
| LINE OUT | Connector | Stereo mini jack |
|---|---|---|
| Maximum output level | +1 dBu | |
| Output impedance | 110 Ω or less | |
| Headphones | Connector | Stereo mini jack |
| Maximum output level | 20 ｍW + 20 ｍW（when 32 Ω load） | |
| Output impedance | 10 Ω or less | |
| Built-in speaker | Type | 20 mm x 30mm elliptical dynamic speaker |
| Effective maximum output | 250mW | |
RECORDER
| Maximum simultaneous recording tracks | 8 |
|---|---|
| Maximum simultaneous playback tracks | 6 |
| Recording formats | WAV |
| 44.1/48/96 kHz, | |
| 32-bit float mono/stereo | |
| BWF and iXML formats supported | |
| Recording media | 4-32GB cards compatible with the microSDHC specification |
| 64GB–1TB cards compatible with the microSDXC specification | |
DISPLAY
| 2.0-inch full-color LCD | 360 x 240 |
|---|---|
USB
| Connector | USB Type-C | |
|---|---|---|
| • Use a USB cable that supports data transfer. | ||
| Audio Interface | USB 2.0 High Speed | |
| Input and output channels | 6 in / 2 out (Multi) | |
| 2 in / 2 out (Stereo) | ||
| Sampling frequency | 44.1/48/96 kHz (AIF only) | |
| 44.1/48 kHz (AIF + onboard recording) | ||
| Bit depth | 24-bit, 32-bit float | |
| File transfer | USB 2.0 High Speed | |
REMOTE
| Dedicated wireless adapter | ZOOM BTA-1 |
|---|---|
POWER
| 4 AA batteries | Alkaline, lithium or rechargeable NiMH batteries |
|---|---|
| AC Adapter | ZOOM AD-17 (DC 5 V/1 A) |
| • USB bus power is supported. | |
ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track recording (XYH-6e)
| Alkaline batteries | About 18 hours |
|---|---|
| NiMH batteries (1900 mAh) | About 14.5 hours |
| Lithium batteries | About 30 hours |
48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 6-track recording (XYH-6e and inputs 1–4)
| Alkaline batteries | About 3.5 hours |
|---|---|
| NiMH batteries (1900 mAh) | About 4 hours |
| Lithium batteries | About 9 hours |
