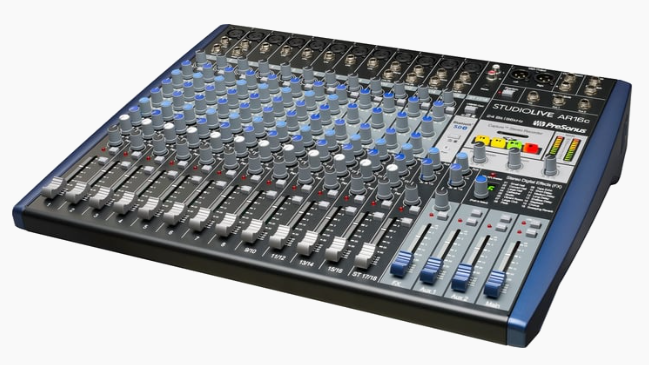

StudioLive AR16c Analog Mixer
In Stock
₵13,886.00₵13,886.00 Excl. TaxIncl. Tax
In Stock
Don’t let the classic analog mixer design fool you – the StudioLive® AR16c was built to record.
Description
- 18×4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface; record every channel plus the main mix
- 2×2 SD recorder (record main mix); supports SD and SDHC formats up to 32 GB
- 18-channel analog mixer with:
- 12 balanced microphone inputs with XMAX mic preamps plus two instrument inputs, 16 balanced line level inputs, and 2 insert points
- Stereo Super Channel (Ch. 17/18) with Bluetooth®0 wireless, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
- Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
- Complete recording solution: Includes Capture™ live-recording software and Studio One® Pro+ for Mac® and Windows
Microphone Preamp
-
Total Harmonic Distortion<0.01% (Minimum Gain, A-Weighted)
-
Signal To Noise Ratio94 dB (+4 dBu)
-
Common Mode Rejection Ratio65 dB (1 kHz, +55 dB Gain)
-
Gain Control Range43 dB (+12 to +55 dB)
-
Microphone Preamp Maximum Input Level+9 dBu ±1.0 dB (Unity Gain)
-
Phantom Power+48 VDC
-
Frequency Response20 Hz to 20 kHz, +0.5/-1.5 dB
-
Microphone Preamp Input Impedance1 kΩ
-
Equivalent Input Noise< 128 dBu (+55 dB gain, 150Ω Input, 20 Hz-22 kHz)
Instrument Inputs
-
Instrument Inputs Impedance> 1 MΩ
-
Instrument Inputs Maximum Level+9 dBu ±1.0 dB (Minimum Gain, 1 kHz@0.5% THD + N)
-
Gain Range43 dB, ±1 dB (+12 to +55 dB)
-
Frequency Response20 Hz to 20 kHz, +0.5/-1.5 dB
-
Dynamic Range> 108 dB (Mid Gain, Unweighted)
-
Total Harmonic Distortion<0.01% (1 kHz, -1 dBFS, Unweighted)
Line Inputs
-
Line Inputs Maximum Level+26 dBu ±1.0 dB (Minimum Gain, 1 kHz@0.5% THD + N)
-
Line Inputs Gain RangeMono: 40 dB, ±1 dB, Stereo: 0 dB or +10 dB
-
Line Inputs Frequency Response20 Hz to 20 kHz, +0.5/-1.5 dB
-
Line Inputs Total Harmonic Distortion<0.01% (1 kHz, -1 dBFS, A-Weighted)
-
Line Inputs Impedance10 kΩ (Balanced)
Main and Line Outputs
-
Main And Line Outputs Frequency Response20 Hz to 20 kHz, +0.5/-1.5 dB
-
Main And Line Outputs Total Harmonic Distortion<0.01% (Bandwidth 20 Hz - 20 kHz, -1 dBFS, Unweighted)
Headphone Outputs
-
Headphone Outputs Maximum Output150 mW /Channel at 60 Ω
-
Frequency Response20 Hz to 20 kHz, +0.5/-1.5 dB
-
Dynamic Range>103 dB (A-Weighted)
-
Total Harmonic Distortion<0.01% (Bandwidth 20 Hz - 20 kHz, -1 dBFS, Unweighted)
Digital Audio
-
Digital Audio Dynamic Range105 dB (A-Weighted, 48 kHz)
-
Digital Audio Bit Depth24
-
Supported Sample Rates44.1, 48, 88.2, 96 kHz
Electronics
-
Voltage100-120V
Miscellaneous
-
Connection TypeIEC
