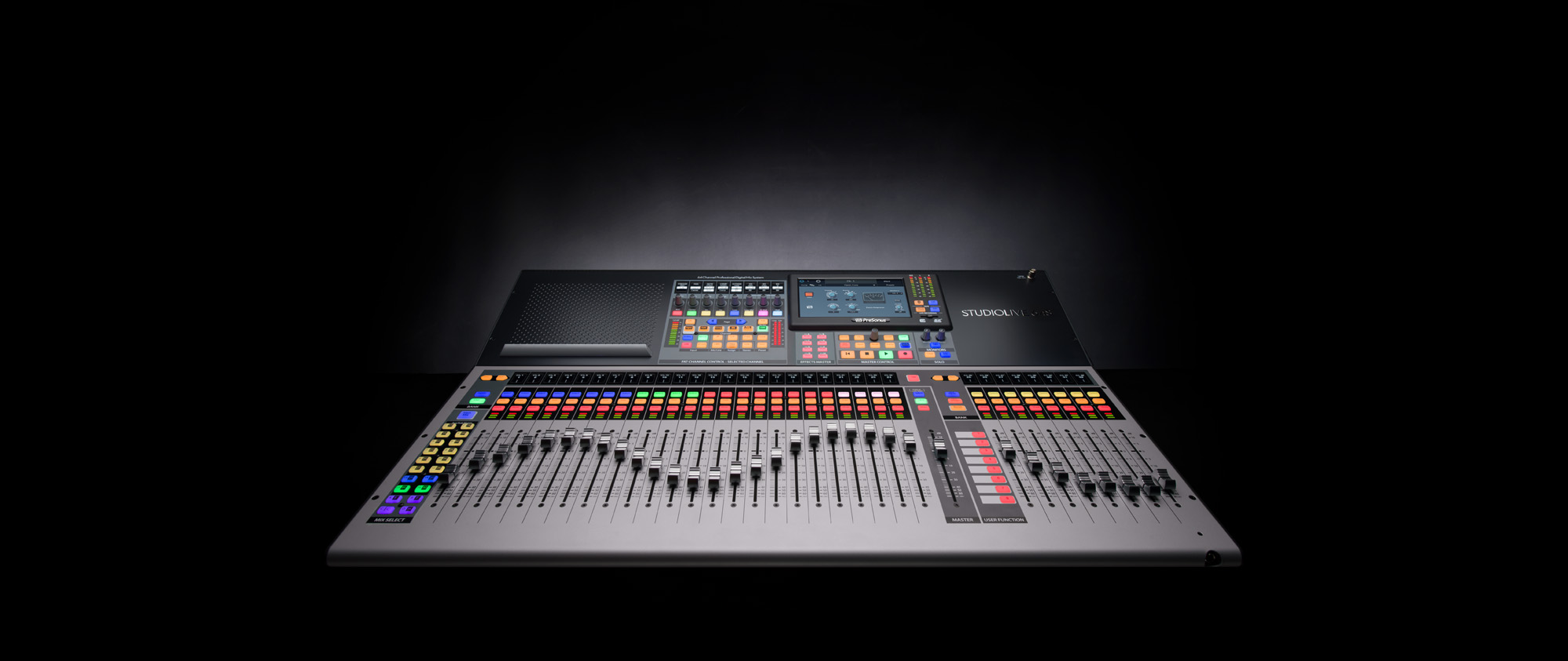

The StudioLive 64S is a 64-channel mixer that brings the power of a large format console to small format digital mixing. Powered by the new quad-core PreSonus FLEX DSP Engine, the StudioLive 64S digital mixer is equipped with 76 mixing channels, 43 mix buses, and 526 simultaneous processors—including 8 stereo reverberation systems, and Fat Channel plug-in models on every input channel and mix bus. With 128 (64X64) channels of USB recording, 128 channels of AVB I/O, flexible routing options, and the studio-grade audio quality that made StudioLive mixers famous, the StudioLive 64S delivers a truly exceptional mixing experience that’s in a class of its own.
Only logged in customers who have purchased this product may leave a review.
|Settings||STUDIOLIVE 64S remove||Passport Conference PA System remove||STUDIOLIVE 32SC remove||PRESONUS CDL 12&18 remove||SOUNDCRAFT MINI STAGEBOX 32R remove||RCF M20X remove|
|Name||STUDIOLIVE 64S remove||Passport Conference PA System remove||STUDIOLIVE 32SC remove||PRESONUS CDL 12&18 remove||SOUNDCRAFT MINI STAGEBOX 32R remove||RCF M20X remove|
Out of stock
Out of stock
Out of stock
|Availability||In Stock||In Stock||In Stock||Out of stock||Out of stock||Out of stock|
|Add to cart|
Versatile Digital Mixer with Powerful Recording CapabilitiesThe StudioLive 64S is a 64-channel mixer that brings the power of a large format console to small format digital mixing. Powered by the new quad-core PreSonus FLEX DSP Engine, the StudioLive 64S digital mixer is equipped with 76 mixing channels, 43 mix buses, and 526 simultaneous processors—including 8 stereo reverberation systems, and Fat Channel plug-in models on every input channel and mix bus. With 128 (64X64) channels of USB recording, 128 channels of AVB I/O, flexible routing options, and the studio-grade audio quality that made StudioLive mixers famous, the StudioLive 64S delivers a truly exceptional mixing experience that's in a class of its own.
Versatile Digital Mixer with Powerful Recording CapabilitiesStudio One revolutionized music recording, making common mixing and production tasks as easy as drag-and-drop. Tight integration with StudioLive 32SC digital mixers allows you to control preamp levels and more right from the Studio One software console. Press the DAW button on your StudioLive 32SC, and your Studio One controls are right under your fingertips on your digital mixer. Studio One control can be toggled on and off, allowing you to quickly switch between your live mix and your production mix with the press of a button. Studio One Artist is included with the StudioLive 32SC, so you can start recording right out of the box.
Symmetrical dispersion matters.Traditional line array loudspeakers typically place a high-frequency horn on one side of the enclosure and a woofer on the other. To obtain a symmetrical image with those loudspeakers, you'd have to flip one over—something they aren't designed to do in the first place—and you'd still have phase issues. With the CDL12, the eight 2-inch high-frequency drivers arc over a single 12-inch woofer, comparable to the coaxial driver configuration found on top studio monitors. The result is better sonic coherence across the entire venue, with no anomalies to compensate for via time-consuming room correction. Regardless of how many CDL12s you stack, you're working with a shared acoustic axis—and non-turbulent sound propagating throughout the room. The CDL12’s hybrid point source/line array design delivers focused sound with consistent SPL coverage both on- or off-axis, making it an excellent choice for mobile and installed applications. Rigging CDL12 enclosures is made easier, thanks to integrated pin-loaded rigging hardware. A dual-angle pole mount is provided, supporting the use of one or two enclosures when pole mounted on a tripod stand, or atop the companion CDL18s subwoofer, allowing the system to adapt to varying audience sizes. When vertically arrayed for suspended applications, up to five CDL12 enclosures can be flown beneath one or two CDL18s subwoofers. When flown without a subwoofer, six CDL12 loudspeakers can be arrayed to create a truly symmetric 120˚ x 120˚ design.
CDL18The unique port configuration in the CDL18s enclosure maximizes efficiency to create a big bass sound from a compact cabinet. Each of the four triangle-shaped ports are placed in the corners so that they couple to the cabinet. This takes advantage of the side walls to build out the port, effectively elongating each port and allowing the CDL18s to move more air in a compact enclosure. This configuration also avoids port chuffing while minimizing baffle reflections to deliver better phase coherence. Its custom 18-inch low-frequency transducer with 4-inch voice coil can travel 7 mm before over-excursion, and easily handles 800W. Every design decision was made so that the CDL18s packs serious punch into a small footprint. Its powerful bass performance and compact design make the CDL18s a desirable choice for both installed and mobile sound applications. Each CDL18s is equipped with an integrated pole mount and supports ground-stacked systems with up to two CDL12 loudspeakers mounted up top. Need more bass from your mobile application? Rig two CDL18s subwoofers together and mount a single CDL12 loudspeaker using a 19-inch sub pole. Integrated pin-loaded rigging makes it easy to fly up to five CDL18s subwoofers, or suspend two CDL18s subwoofers with five CDL12 loudspeakers below to create a complete CDL constant curvature array system for suspended applications where professional concert level sound quality is essential
Onboard Processing PowerThe CDL18s features an integrated PDA-1000, a heavy-duty 1000W Class D power amplifier with robust onboard DSP. For more advanced applications, each CDL18s can be connected to a standard LAN network and remotely controlled using Worx Control software for macOS® and Windows®. When combined with the CDL12 and CDL18s, Worx Control provides speaker-management tools that include compression, limiting, and 800 ms of delay. Speakers can be grouped and managed individually or together. Performance monitoring indicators allow you to monitor temperature and signal levels remotely.
DanteThe locking Ethernet connection on the CDL12’s integrated PDA-1000 power amplifier also provides audio networking capability via Dante. Dante’s multi-channel digital media networking technology delivers near-zero latency and synchronization and has been adopted by many pro-audio manufacturers, facilitating the CDL12 loudspeaker’s interoperability with a wide range of equipment. Each CDL12 consists of eight 2-inch drivers aligned in a segmented circular-arc high-frequency array centered in front of a 12-inch woofer. The output of the low-frequency driver travels from the same acoustic axis as the high-frequency array so that the pattern always radiates from the center of the CDL12. This is true whether the CDL12 is used individually on a tripod speaker stand or as part of an acoustically coupled vertical array with up to six enclosures. Because of this, the CDL12 avoids the near-field anomalies that can interfere with the sound quality of a traditional line array. This makes the CDL12 ideally suited for a broader range of venue sizes, creating a far-field response almost immediately as the sound is projected from the center of the enclosure.
|The Mini Stagebox 32R (3U) provides 32 analogue inputs and 8 analogue line outputs, with 4 pairs of AES outputs, providing a total I/O capacity of 32 inputs and 16 outputs, with the Mini Stagebox 16R (2U) model providing 16 analogue inputs and 8 line outputs making a 16 x 8 matrix. They connect to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted to the option card slot. The Mini Stagebox models contain an integral PSU so are completely self-contained and sit comfortably stage-side. The new units are part of the ViSi Connect range of interface options for all Soundcraft mixing consoles which includes the Compact and Vi Stageboxes and a range of option cards such as MADI, AES, CobraNet and AES. Both models are supplied with the stagebox card installed, plus the corresponding card for an Si series console (Vi console MADI cards sold separately)|
