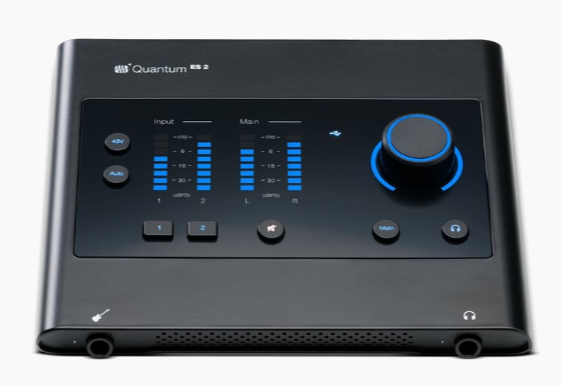

Quantum ES 2 USB-C Audio Interface
In Stock
₵4,698.00₵4,698.00 Excl. TaxIncl. Tax
In Stock
Capture your creativity with the Quantum ES 2.
Description
- High Performance Signal Flow – Custom low-latency drivers and low-noise converters.
- All-New MAX-HD Mic Preamps – The culmination of 30 years of innovation, our rigorously redesigned preamps feature digitally-controlled analog with +75 dB of gain range.
- Co-Developed with Fender® – Front-facing instrument input engineered for guitarists by industry-leading experts.
- Professional Recording Software Included – 6 months of Studio One+ with full access to Studio One, add-ons, and more.
- Auto Gain – Dial in recording-ready levels, hassle-free.
- Universal Control App – Full control and metering from your mobile device, desktop, or tablet.
Controls and Connections
-
Headphone JackOne - 1/4" TRS Female Stereo
-
ConnectivityUSB-C®
-
MIDI I/O3.5 mm Type-B
Microphone Preamp
-
Microphone Input Connection TypeXLR Female (Combo), Balanced
-
Total Harmonic Distortion0.001% (1 kHz, Minimum Gain)
-
Gain Control Range75 dB
-
Microphone Preamp Maximum Input Level+14 dBu (Balanced, Minimum Gain)
-
Phantom Power+48 VDC
-
Frequency Response20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
-
Microphone Preamp Input Impedance1600 Ohms
-
Dynamic Range113 dB (A-Weighted, Minimum Gain)
-
Equivalent Input Noise-129 dBu (Maximum Gain, 150 Ohms, 22 kHz BW, A-Weighted)
Instrument Inputs
-
Instrument Inputs Impedance1M Ohms
-
Instrument Inputs Maximum Level+15 dBu (Unbalanced, Minimum Gain)
-
Gain Range75 dB
-
Frequency Response20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
-
Dynamic Range111 dB (A-Weighted, Minimum Gain)
-
Total Harmonic Distortion0.002% (1 kHz, Minimum Gain)
Line Inputs
-
Line Inputs Maximum Level+15 dBu (Balanced, Minimum Gain)
-
Line Inputs Gain Range+/- 10 dB
-
Line Inputs Frequency Response20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
-
Line Inputs Dynamic Range114 dB (A-Weighted, Minimum Gain)
-
Line Inputs Total Harmonic Distortion0.001% (1 kHz, Minimum Gain)
-
Line Inputs Impedance10K Ohms
Main and Line Outputs
-
Main And Line Outputs Maximum Level+15 dBu (Balanced)
-
Main And Line Outputs Frequency Response20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
-
Main And Line Outputs Total Harmonic Distortion0.001% (1 kHz, +4 dBu)
-
Main And Line Outputs Dynamic Range117 dB (A-Weighted)
-
Main And Line Outputs Output Impedance51 Ohms
Headphone Outputs
-
Headphone Outputs Maximum Output7.5 dBu (50 Ohms)
-
Frequency Response20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
-
Dynamic Range111 dB (A-Weighted)
-
Total Harmonic Distortion0.02% (1 kHz)
-
Headphone Outputs Impedance Working Range22 Ohms
Digital Audio
-
Digital Audio Dynamic Range120 dB
-
Digital Audio Bit Depth24-bit
-
Supported Sample Rates44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Weights and Dimensions
-
Height1.9" (48.3 mm)
-
Depth6.2" (158 mm)
-
Width6.9" (175 mm)
-
Weight1.5 lb. (0.68 kg)
Accessories
-
Included Accessories1.5M USB-C to USB-C cable
