Nord Piano 5

GLOBAL

• OLED Display
• Seamless Transitions
• Split Point Crossfades
• 16 banks with 25 programs - 400 locations
• Organize functionality for programs
• Live Mode - 5 Live programs
• Global Transpose: +/- 6 semitones
• Program Transpose: +/- 6 semitones
• Fine-tune: +/- 50 Cents
• Kbd Touch: 3 velocity response curves
• Triple Sensor keybed with Virtual Hammer Action Technology
• Split functionality with selectable split point and LED indication
• Layer functionality
• Mono Output option
• Dynamic Sustain Pedal action with the included Nord Triple Pedal
• USB-MIDI
• Free OS updates

PIANO SECTION

• 2 independent Layers
• 6 types - Grand, Upright, Electric Pianos, Digital, Layer, Clavinet and Harpsichord.
• Each category can contain up to 20 different models.
• 120 Voice Polyphony (stereo/mono pianos)
• Piano Timbre feature with Soft, Mid and Bright settings for acoustic pianos. Dyno 1 and 2 options for electric pianos.
• Layer Detune with 3 amounts
• Advanced String Resonance (Generation 2) - adjustable amount
• Selectable Soft Release for Grand, Upright, Electric Pianos and Harpsichord
• Selectable Pedal Noise for Grand, Upright and Electric Pianos 1 - adjustable amount
• Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)

SAMPLE SYNTH SECTION

• 40+ Voice Polyphony
• Amp envelope with Attack and Decay/Release
• Bright and Soft Timbre options
• Adjustable Vibrato with 3 Delay options
• Unison feature with 3 amounts
• Selectable velocity sensitive low pass filter and dynamic range
• Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)
• Volume controllable with Volume Pedal (not included)

MEMORY

• Approx. 2 GB dedicated to the Nord Piano Library
• Approx. 1 GB dedicated to the Nord Sample Library

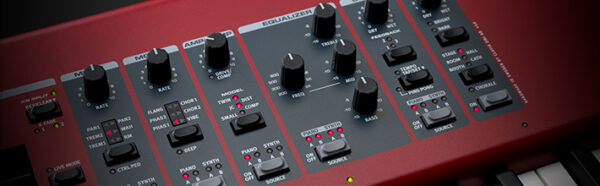

EFFECTS SECTION

Effect 1

• Pan, Tremolo, Wah and Ring Modulator
• Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob
• Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal

Effect 2

• Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe
• Two selectable depths for each effect

Amp Simulations, Comp and EQ

• Comp/Amp - three amp/speaker simulations, Tube Overdrive
• Drive/Compression amount controlled with the Drive knob
• Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation
• Global mode for EQ

Delay

• Delay Effect with Rate, Amount and Tap-tempo controls
• Ping-Pong mode
• Global mode

Master Effects

• Dedicated Reverb with Booth, Room, Stage, Hall and Cathedral algorithms. Dark/Bright settings and optional Chorale modulation effect.

CONNECTIONS

• 2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced
• 1 Monitor input - 1/8", 3,5 mm stereo jack
• 1 Headphone output - ¼", 6,35 mm stereo jack
• 1 Sustain Pedal input - ¼", 6,35 mm jack. Use the included Nord Triple Pedal or a momentary pedal.
• 1 Volume Pedal input - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Roland EV-5 etc.
• MIDI In, MIDI Out - 5 pin DIN connectors
• USB - type B connector - for transferring sounds and USB-MIDI
• IEC C14 power connector
