MQ 60H 2 WAY WALL MOUNT SPEAKER

In Stock
2,830.00
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
Compare
Other people want this. 1 people have this in their carts right now.
Category:

Description

FEATURES

  • Two way Bass reflex speaker for music reproduction
  • Speaker composed by 5″ woofer 5″ and 2 x 1″ dome tweeter
  • Max output power 120 W
  • Bypass configuration input 16 O, output power 60 W RMS
  • 30W – 20W – 10W – 5W output power for 100 V line
  • 15W – 10W – 5W – 2,5W output power for 70 V line
  • 2600 Hz crossover frequencies with attenuation 12/12 dB/oct
  • Dynamic Protection on woofer and tweeter

Brand

RCF

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Quick Comparison

SettingsMQ 60H 2 WAY WALL MOUNT SPEAKER removeMQ 50 2 WAY COMPACT SPEAKER removeFDB ES104T WATERPROOF PLASTIC SPEAKER removeFDB ES108BT WATERPROOF PLASTIC SPEAKER removeFDB ES106BT WATERPROOF PLASTIC SPEAKER removeDM 61 2 WAY COMPACT SPEAKER remove
NameMQ 60H 2 WAY WALL MOUNT SPEAKER removeMQ 50 2 WAY COMPACT SPEAKER removeFDB ES104T WATERPROOF PLASTIC SPEAKER removeFDB ES108BT WATERPROOF PLASTIC SPEAKER removeFDB ES106BT WATERPROOF PLASTIC SPEAKER removeDM 61 2 WAY COMPACT SPEAKER remove
SKU
Rating
Price2,830.002,310.001,965.004,950.003,672.001,700.00
Stock
In Stock
In Stock
In Stock
In Stock
Out of stock
In Stock
AvailabilityIn StockIn StockIn StockIn StockOut of stockIn Stock
Add to cart

Add to cart

Add to cart

Add to cart

Add to cart

Read more

Add to cart

Description
Content

FEATURES

  • Two way Bass reflex speaker for music reproduction
  • Speaker composed by 5" woofer 5" and 2 x 1" dome tweeter
  • Max output power 120 W
  • Bypass configuration input 16 O, output power 60 W RMS
  • 30W - 20W - 10W - 5W output power for 100 V line
  • 15W - 10W - 5W - 2,5W output power for 70 V line
  • 2600 Hz crossover frequencies with attenuation 12/12 dB/oct
  • Dynamic Protection on woofer and tweeter

FEATURES

  • Two way Bass refl ex speaker for music reproduction
  • Speaker: woofer 5" - tweeter 0,75" dome
  • Power/RMS: 120/60 W Bypass
  • Crossover frequencies: 4500 Hz, 12/12 dB/oct

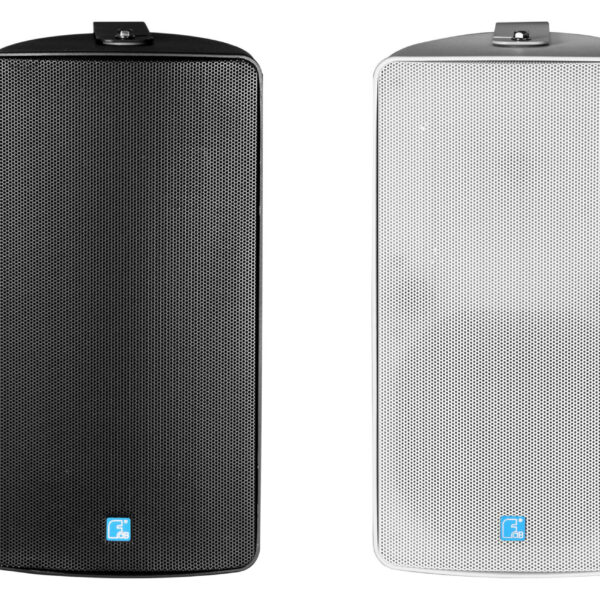

ES104 series is a group of 4" two-way all-weather speakers with different colors and functions. With waterproof, dustproof, windproof, anti-uv aging, specially designed dustproof and waterproof cover for input and output, has a pressing device, multi-layer different functional grille. The cabinet meets the IP46 standard. The exposed metal parts are made of stainless steel or aluminum, and the mounting bracket is sprayed with low-carbon steel, which can meet all-weather use (the version suitable for the marine environment can be customized, and the mounting bracket is upgraded to 316 stainless steel). Unit configuration: 1x4" ferrite mid-bass and 1x 0.8" dome tweeter, the cabinet is made of polymer compound injection molding. B and W after the model represent black and white, T represents the configuration of transformer and band switch, to achieve a variety of different output powers including constant resistance.ES108BT Multi-purpose project waterproof Speaker Description: The ES108BT is a highly weather-resistant,single 8" 2-way full range loudspeaker, the body is made of engineering plastic injection molding.fitted with one 8" mid-woofer and one 1" HF driver. The system conforms to IP46 international standard. ES108BT is equipped with multi-tap transformer based on ES108. Features: ● Highly weather-resistant IP46 rating ● Engineering plastic injection molding ● Two kinds of mounting brackets ● Good used for meeting rooms, shops, water parks,outdoor background music, swimming pools, and a wide variety of other outdoor or indoor background music Specification:
MODEL ES108BT
FREQUENCY RESPONSE(-3dB) 60Hz-20KHz
FREQUENCY RESPONSE(-10dB) 55Hz-20KHz
DRIVERS 1×8"(150mm)/2"voice coil LF
1×1"(25mm)/1"voice coil HF
INPUT VOLTAGE 100V
RATED POWER 37.5W/75W/150W/OFF/16Ω
SENSITIVITY 94dB 1watt/1 metre
MAXIMUM SPL 116dB continuous,122 dB peak
IMPEDANCE 16 ohms nominal
DISPERSION(-6dB) 90°×50°
CROSSOVER FREQUENCIES 2.3kHz passive
INPUT CONNECTORS covered barrier strip terminals
PACKAGE SIZE 352×292×495mm
NET WEIGHT 10 kg/pc
GROSS WEIGHT 12 kg/pc
ES106BT Multi-purpose project waterproof Speaker Description: The ES106BT is a highly weather-resistant,single 6" 2-way full range loudspeaker, the body is made of engineering plastic injection molding.fitted with one 6" mid-woofer and one 1" HF driver. The system conforms to IP46 international standard. ES106BT is equipped with multi-tap transformer based on ES106. Features: ● Highly weather-resistant IP46 rating ● Engineering plastic injection molding ● Two kinds of mounting brackets ● Good used for meeting rooms, shops, water parks,outdoor background music, swimming pools, and a wide variety of other outdoor or indoor background music Specification:
MODEL ES106BT
FREQUENCY RESPONSE(-3dB) 60Hz-18KHz
FREQUENCY RESPONSE(-10dB) 55Hz-20KHz
DRIVERS 1×6"(150mm)/1.5"voice coil LF
1×1"(25mm)/1"voice coil HF
INPUT VOLTAGE
RATED POWER 80W RMS. 320W PEAK
SENSITIVITY 89dB 1watt/1 metre
MAXIMUM SPL 110dB continuous,116 dB peak
IMPEDANCE 16 ohms nominal
DISPERSION(-6dB) 90°×60°
CROSSOVER FREQUENCIES 2.4kHz passive
INPUT CONNECTORS covered barrier strip terminals
PACKAGE SIZE 524×242×417mm(1 pair)
NET WEIGHT 5 kg/pc
GROSS WEIGHT 15 kg/pair

FEATURES

  • Woofer 6" with mylar cone tweeter
  •  Program/rated power: 50/25W
  •  Built-in multitap transformer for constant voltage system
  •  Body in self-extinguishing composite material
  •  IP55 protection, suitable for outdoor use
  •  Each model can be connected to either a 100 V constant voltage line or a low impedance amplifier output
  • FREQUENCY RESPONSE (-10DB):
    70 Hz ÷ 20000 Hz
    MAX SPL @ 1M:
    106 dB
    POWER HANDLING:
    25 W RMS
WeightN/AN/AN/AN/AN/AN/A
DimensionsN/AN/AN/AN/AN/AN/A
