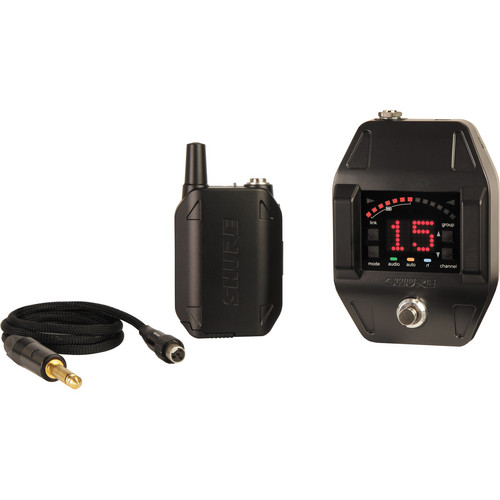

| Content | | | | Shure GLXD16 Specs
System
| Wireless Transmission |
Digital 2.4 GHz |
| Included Transmitters |
1 x Bodypack |
| Diversity |
True Digital Diversity |
| RF Channel Scanning |
Auto-Scan |
| Max Operating Range |
200' / 61 m (Line of Sight) |
| Max Systems per Setup |
8 |
| Latency |
4 to 7.3 ms |
| Dynamic Range |
120 dBA |
| Modulation |
Proprietary |
Receiver
| Form Factor |
Stompbox |
| Antenna |
2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount) |
| Number of Audio Channels |
1 |
| Audio I/O |
1 x 1/4" 3-Pin Female Balanced Output |
| Gain Range |
-20 to +40 dB (1 dB Steps) |
| Audio Output Level |
1/4" Output:
+8.5 dBV |
| Frequency Response |
20 Hz to 20 kHz (Dependent on Mic) |
| USB/Lightning Connectivity |
1 x Micro-USB (Host Connection) |
| Impedance |
1/4" Output:
100 Ohms (Balanced)
50 Ohms (Unbalanced) |
| Spurious |
Rejection: >35 dB |
| Power Requirements |
AC/DC Power Adapter |
| AC/DC Power Adapter |
14 to 18 VDC at 550 mA, Center-Positive (Included) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Display & Indicators |
1 x Backlit LCD (AF Level, Channel, Frequency, Group, Menu Navigation, Mute, Transmitter Battery Status) |
| Housing |
Metal |
| Dimensions |
3.7 x 1.8 x 5.2" / 95 x 46 x 133 mm |
| Weight |
17.8 oz / 504 g |
| Shure Beta 91A Kick Drum Microphone Features:
- Boundary condenser microphone for low-frequency sources
- Tailored frequency response makes bass-heavy sources sound amazing
- Custom-tailored half-cardioid polar pattern rejects feedback and supplies superior off-axis rejection
- Impressive SPL handling effortlessly tackles extra-loud sources
- 2-position contour switch filters your low-frequency response for added clarity and attack
- integrated preamp and XLR connector reduce stage clutter and ensure a quick, secure setup
- Low-profile design requires no external mounting hardware and takes up little space
- Extra-durable steel grille and die-cast metal construction
| Mackie Thump12A Features:
- 1,300 watts of high-output power in a portable package
- Class D amplifier with Dynamic Bass Response yields detailed midrange and abundant bass that are ideal for small venues
- 12" low-frequency driver and 1.4" titanium dome compression driver
- Built-in 2-channel mixer features Vita preamps with Wide-Z technology that handle mic, instrument, and line-level signals
- XLR thru output for wired connection to other Thump speakers
- Integrated precision crossover and transducer time-alignment deliver outstanding sound quality
- 4 application-specific speaker modes ensure outstanding sound quality in every situation
- Robust system protection and thermal limiting keep your system safe
- Flexible mounting options allow tripod-mounting, pole-mounting, and stage monitor use
- Compact and lightweight for easy setup and transport
- Housed in a tough, road-ready enclosure
|
