Allen & Heath QU-7D Dig. Mixer
In Stock
In Stock
Compact 38in/24out 96kHz Mixer with Dante
Description
The Qu-7D is a compact but powerful 32-channel digital mixing console built around Allen & Heath’s high-performance 96 kHz XCVI core, delivering pristine audio quality with very low latency — ideal for live sound, broadcast, AV installs, or studio work.
| Category | Specification / Feature |
|---|---|
| Core / Processing | 96 kHz XCVI digital core |
| Mix Capacity | Up to 38 inputs to mix (32 mono/linkable + stereo inputs + USB / returns) |
| 12 mix busses (6 mono/linkable aux/group + 6 stereo aux/group) | |
| 4 mono/linkable matrix buses | |
| Stereo LR main output | |

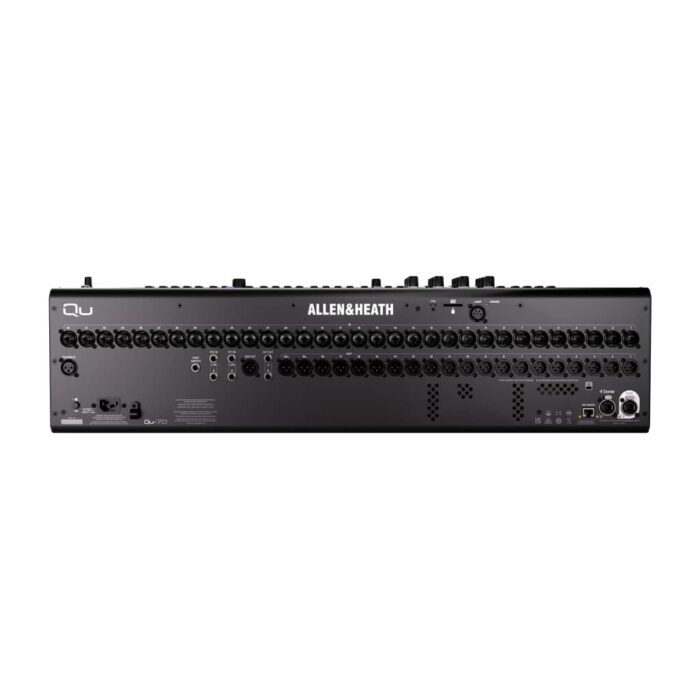

| Inputs (Analog / Line-ins) | 32 × XLR/Jack “Combi” mic-line inputs (mic/line) |
| 2 stereo line-input pairs (each 2× TRS) | |
| 1 XLR for talkback | |
| Outputs | 20 × XLR analog outputs |
| 2 × TRS outputs (analogue alt/aux) | |
| 1 × AES3 stereo digital output | |
| Stereo headphone output | |
| Network / Expansion / Digital I/O | Built-in 16×16 Dante interface (48/96 kHz) with locking EtherCon port — Dante version only (Qu-7D) |
| 128×128 “Everything I/O” SLink expansion port for remote I/O / stage boxes etc. | |

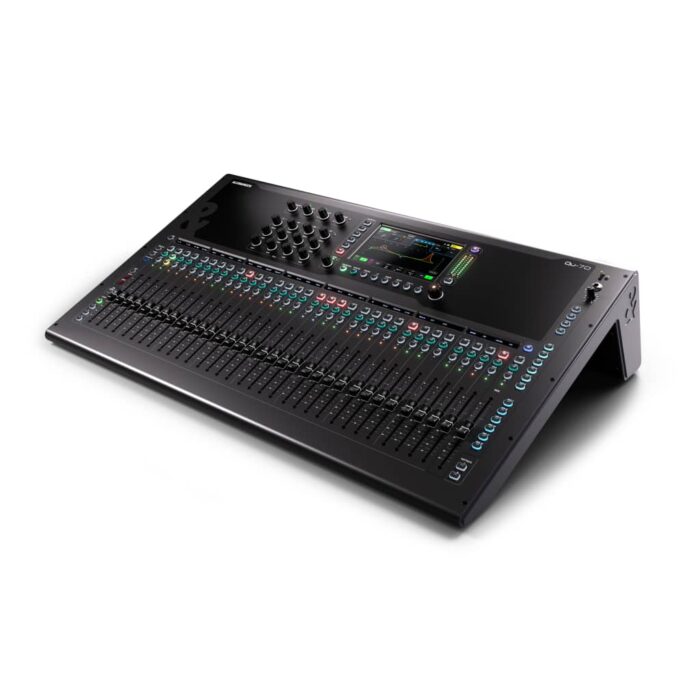

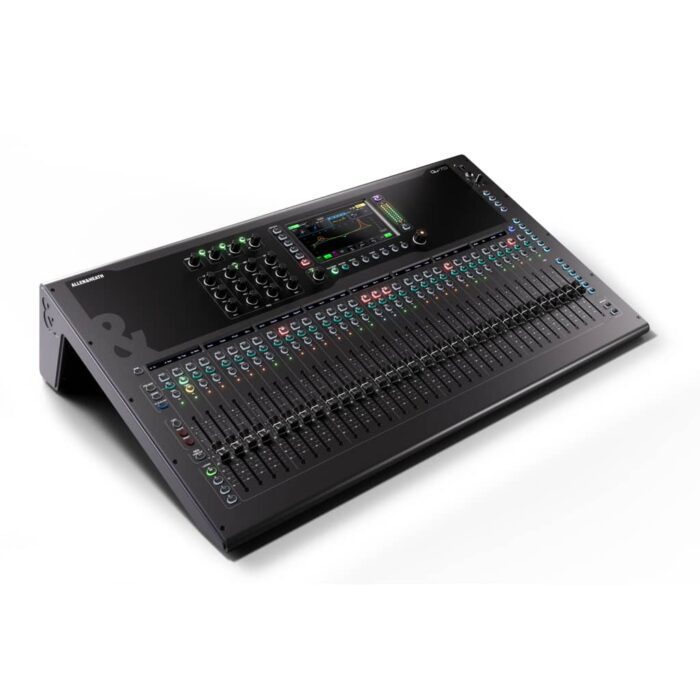

| Control Surface | 33 motorised 100 mm fader. |
| 7” capacitive touchscreen display | |
| 4 fully customisable fader layers (channel-strip layers) | |
| 8 assignable SoftKeys | |
| Configurable single or dual footswitch input; 12 V lamp socket; configurable chromatic channel-meter LEDs | |
| Onboard Processing / Effects | 6 multi-FX engines with dedicated stereo returns |
| DEEP-processing capable (e.g. parametric EQ, compression, gating, delay etc.) | |
| Recording / Playback / Multitrack I/O | USB-C audio interface — up to 32×32 channels for multitrack record/playback |
| SD card slot — multitrack record/playback (e.g. 16×16 @ 96 kHz, 32×32 @ 48 kHz) | |
| USB-A port — stereo audio record/playback / data transfer | |
| Physical / Misc | Dimensions: 800 × 476 × 213.1 mm (W × D × H) |
| Weight: ~16.7 kg | |
| IEC Mains power (worldwide PSU), RJ45 network socket, optional 19” rack-mounting (kit sold separately) |
